The perfect base GNSS receiver SMART GNSS Antenna STONEX S6II

The color touch display and the ability to connect an external antenna make the STONEX S6ii/S980 an extremely effective receiver, capable of detecting GPS, GLONASS, BEIDOU, GALILEO and QZSS constellations, making it suitable for any job.

With a 4G GSM modem, a fast Internet connection is guaranteed, while Bluetooth and Wi-Fi modules always enable reliable data flow to the controller. These features, combined with the built-in 2-5W radio, make the S6II the perfect receiver as a base station. The S6II also features optional IMU technology with quick initialization and tilt up to 60°.

The S6II has a 1PPS port that can be used in applications requiring precise timing to ensure joint operation of multiple instruments or using the same parameters for integration of systems based on precise timing.

STONEX S6II GNSS Receiver Features:

MULTI CONSTELLATION
STONEX S6ii/S980 with its 1408 channels, provides an excellent on-board real-time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO and QZSS) are included, no additional cost.

2-5W RADIO
STONEX S6ii/S980 has integrated 2-5W UHF radio with 410-470MHz frequency. The receiver is equipped with an external radio antenna to work better.

ELECTRONIC BUBBLE + IMU
On STONEX S6ii/S980 through E-Bubble it can be displayed directly on software if the pole is vertical and the point will be recorded automatically when the pole is levelled.
It is also available the IMU technology, only a fast initialisation is request, tilt survey up to 60 degrees. No problem of electromagnetic disturbances.

COLOR TOUCH DISPLAY
STONEX S6ii/S980 comes with a convenient color touch display for easy management of the most important functions.

EXTERNAL GNSS ANTENNA
STONEX S6ii/S980, through the appropriate connector, can be connected to an external GNSS antenna and is transformed from an RTK receiver to CORS.

1PPS PORT
The STONEX S6ii/S980 has a 1PPS port that can be used in applications requiring precise timing to ensure joint operation of multiple instruments or using the same parameters for integration of systems based on precise timing.

Surpad 4.2 Software
Enjoy the powerful functions, including tilt survey, CAD, line stakeout, road stakeout, GIS data collection, COGO calculation, QR code scanning, FTP transmission, etc. Abundant Formats for Importing and Exporting. Easy-to-use UI. Advanced Display of Base Maps. Compatible with Any Android Devices. Powerful CAD Function.

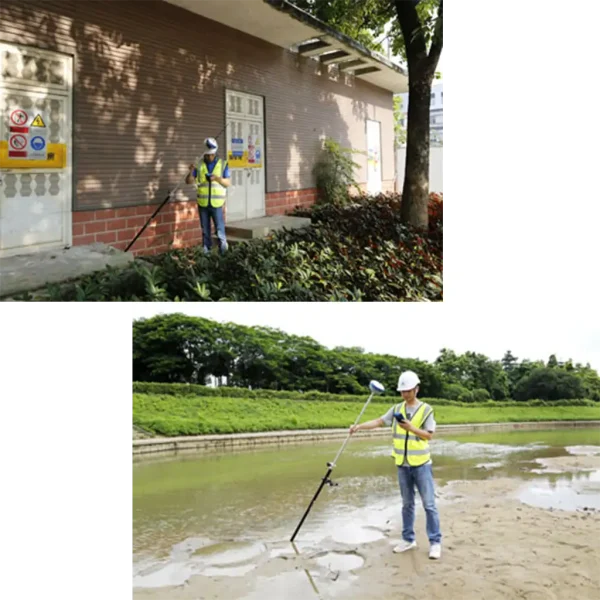

What are the performances of the STONEX S6ii/S980 with IMU?

• Fast initialization
• Up to 60° inclination
• 2 cm accuracy 30°
• 5 cm accuracy 60°
• Fast and precise survey
• No problem of electromagnetic disturbances

STONEX S6ii/S980 with IMU system makes reliable every measurement, both survey and the stake out jobs, and makes extremely faster the acquisition of points: up to 40% of the field work time can be saved!

GNSS
Channels: 1408
Signals:
GPS: L1CA, L1C, L2P, L2C, L5
GLONASS: L1, L2, L3
BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b
GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2, L5
IRNSS: L5
SBAS
PPP: B2b PPP, HAS
Accuracy
Static: H: 3 mm±0.5ppm, V: 5 mm±0.5ppm
RTK: H: 8 mm±1ppm, V:15 mm±1ppm
DGNSS: <0.5m
ATLAS: 8cm
System
Initialization Time: 8s
Initialization Reliable: 99.90%
Operating System: Linux
Merrory: 32GB
Wifi: 802.11 b/g/n
Bluetooth: V2.1+EDR, V5.0
E-Bubble: support
Tilt Survey: IMU Tilt Survey 60°
Radio
Type: Tx/Rx Internal Radio, 2-5Watt, radio support 410-470Mhz
Channel Spacing: 12.5KHz/25KHz
Range: 5Km in urban environment, Up to 15Km with optimal conditions
Physical
Interface: 1PPS port, 1*5Pin(Power & Radio), 1*Type-C,GNSS port
Button: 1 Power Button
Size: Φ151mm * H 92mm
Weight: 1.5kg
Power supply
Battery capacity: 7.2V, 13600mAh (internal batteries)
Working Time: Up to 15 hours
Charge Time: Typically 4 hours
Environment
Work Temperature: -40℃~ +65℃
Storage Temperature: -40℃~ +80℃
waterproof & dustproof: IP67 Standard
Vibration: Vibration resistant
